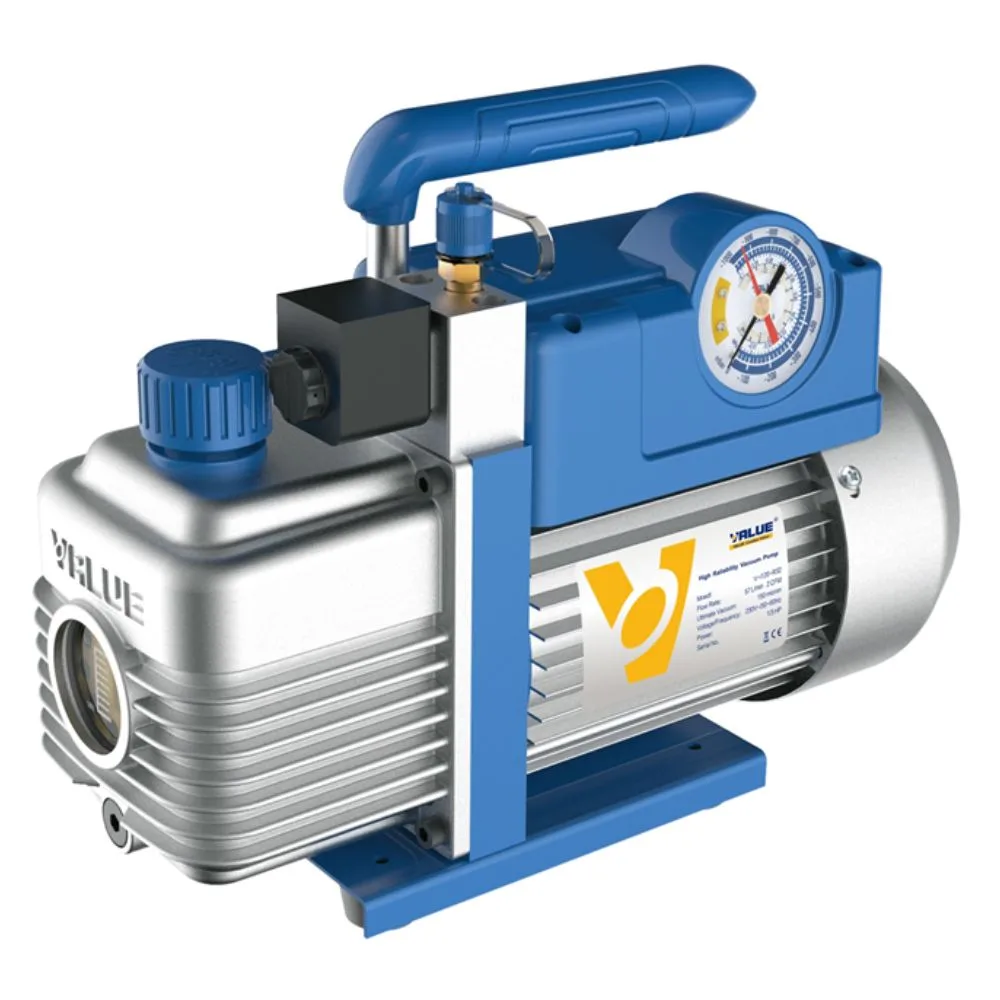

Vacuum Pumps V-i220-R32
The vacuum pump VALUE is designed to work with refrigerants like HFC and HCFO (eg R32, 1234yf). Dual stage vacuum pump is used in refrigeration and air conditioning.
The main features:
- dual-stage
- compact construction
- sight glass to control the oil level
- precision vacuum gauge
- the vacuum solenoid valve and preventing back flow of oil into the system
- option to use an optional P4 oil mist filter
Share Product :
Facebook
Twitter
LinkedIn
Pinterest
Description
| Flow | 51 l/min; 1,8 CFM |
| Vacuum Level (Partial / Total) | 0,2 Pa / 15 microns |
| Motor Power | 0,24 kW (0,(3) KM) |
| Compression Stages | 2 |
| Power Supply | 230 V |
| Frequency | 50 – 60 Hz |
| Power Cord Length | 200 cm |
| Motor Speed at 50 Hz | 1400 rpm |
| Noise Level | 65 dB |
| Inlet Connection | 1/4″ SAE |
| Oil Capacity | 0,2 l |
| Oil Type | mineral, viscosity: 46 mm²/s |
| Dimensions | 318 x 124 x 237 mm |
| Weight | 9,0 kg |
| Protection Class | IP44 |
| Operating Temperature | 5 – 40°C |
| Storage Temperature | -20 – 60°C |
| Minimum Oil Temperature for Startup | 5°C |
| Shut-Off Valve | yes |
| Exhaust Plug Thread | M24 x 1,5 mm |
| Vacuum Gauge | internal |
| Vacuum Gauge Size | 50 mm |
| Vacuum Gauge Accuracy | class 1.6 |
| Vacuum Gauge Units | mbar / KPa |
| Packaging | cardboard box |
